Multi Quick 60 Series 8
Specifications - Metric
Application Examples: Injection Molding, Blow Molding, Stamping, Punching, Milling and Drilling
  • Trademark Multi Quick
  • Stepless vertically and horizontally adjustable
  • Strong clamping pressure for small clamping torque
  • Material: Hardened alloy steel
  • Clamping Arm & Clamping Shoe: Drop forged
Clamping Force: Up to 24 kN

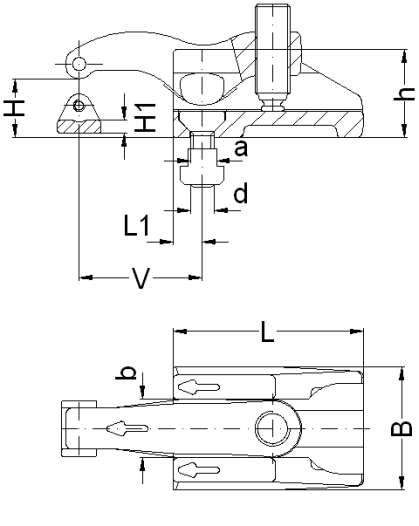

*** MQ60 COMPONENT 8 ***      *** MQ60 COMPONENT 8 SPECS ***
H Bolt Size
(d)		 T-Slot Size
(a)		 Part Number
(w/o fixing set)		 V L L1 B b h H1 kN
5-25 Up to

12mm

 Please
Contact Us		 060-025-13 15-31 48 10 44 14 30 4 24
5-32 Up to

12mm

 060-032-13 13-39 65 10 45 14 30 4 24
Other sizes available



Spare Parts - Metric
*** CLAMPING SHOE *** *** CLAMPING ARM *** *** SPRING WITH SCREW ***
↑		 *** BALL PRESSURE SCREW ***
↑		 *** ALLEN KEY ***
↑
↑ *** COUNTERSUNK SCREW ***
↑		 *** T-NUT ***
↑		 ↑ *** PROTECTION PLATE ***
↑
Clamping Shoe Countersunk
Screw		 T-Nut Clamping Arm Protection Plate Spring
with Screw		 Ball Pressure
Screw		 Allen Key
Part No. Part No. Part No. Part No. Part No. Part No. Part No. Part No.
060-2-048-13 Up to

12mm

 Please
Contact Us		 060-3-025-09 991-150-08-1 360-060-09 310-12-032 610-06
060-2-065-13 Up to

12mm

 060-3-032-09 991-150-08-1 360-060-09 310-12-036 610-06
Other sizes available
